产品详情
- 品牌：恒好激光
- 型号：HD1390
- 作用原理：连续激光
- 激光发生器：二氧化碳激光器
- 控制方式：数控
- 电源类型：交流电源
- 作用对象：非金属
- 定位精度：0.01mm
- 快进速度：24000（mm/min）mm/min
- 连击时激光焊接频率：0~150
- 最大激光功率：150W
- 最大平均功率：150W
- 工作电压：220V
- 用途：雕刻
- 外形尺寸：可定制mm
- 切割头：新加坡进口激光头

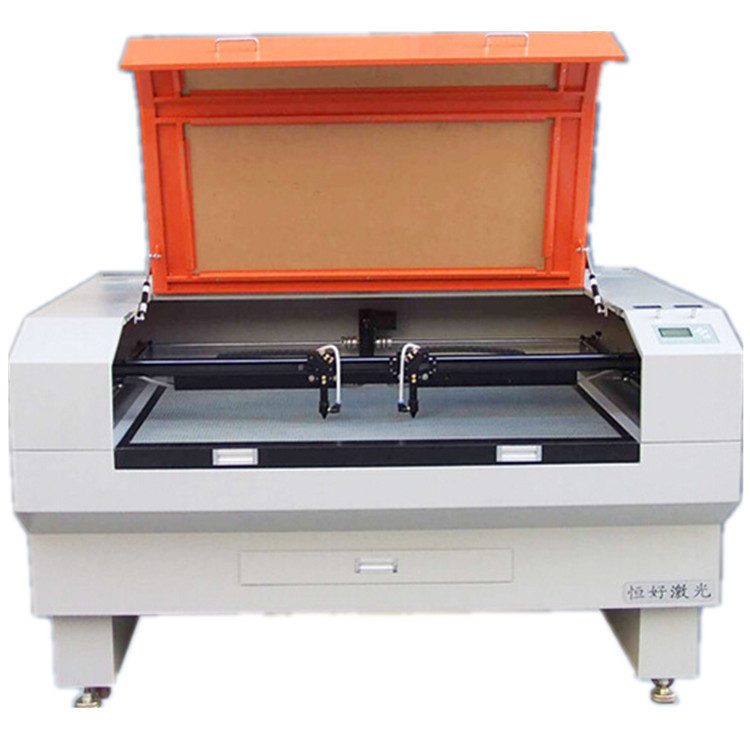

- 切割头：双头
- 激光均率：80W
机型简介Means of indicators
HD 激光切割雕刻机是一款专门为工艺品及精度要求高的产品雕刻面设计的机型，主要体现速度快精度高的两大特点。机器采用X轴Y轴细分步进系统，配有三条进口直线导轨，进口三相步进电机，全不锈铁蜂窝底板平台，新加坡光路系统，在电路控制系统上采用DSP控制技术，高效稳定的开关电源，USB数据传输，使整机工作更稳定，速度更快，精度更高，其广泛应用在工艺品雕刻、橡胶印刷版雕刻，电子产品雕刻，摄影影像雕刻、模型雕刻等对雕刻精度要求比较高的行业。
HD laser engraving machine is a dedicated to artworks and high precision products carving face design of aircraft, mainly reflected faster of the two high precision characteristics ,X-axis machines Y-axis stepper system imports three –phase stepper motor ,all stainless cellular on floor platb, Singapore optical system ,the circuit control system using DSP technology, a higGLy efficient and stable power supply switches, USB data transmission ,unit work more stable ,faster ,more precise its widely used in carving handicrafts , rubber hardcory sculpture , electronic products , sculpture, photography images carving handicrafts , rubber hardcopy sculpture, electronic products , sculpture , photography images carving, sculpture ,etc. Model for carving high precision industries
具体特点Specific features
1. 雕刻路径多种优化方式，可以最短路径工作，大大节省时间，提高工作效率
2 大屏幕中英文液晶显示屏，用户可以随意调取存贮文件，人性化操作方便
3 系统调入图形图像数据后，可进行简单排版编辑（如缩放、旋转、复制等）。
4 可以分层输出数据，对每层可以单独定义参数自动保存。
5 可以对图像进行雕刻，对矢量图进行画线、切割和雕刻，并可以设置雕刻精度。
6 配置粤通激光设主板，可实现脱机、能量控制、具有分色切割和坡度雕刻的功能
使雕刻切割精度更高，满足包装印刷行业的要求。
7 专业开发的控制软件，拥有自主知识版权、能实现雕刻切割的参数设置，具有包络线切割功能，可自动生成包络线，可随意设置雕刻区域及其参数，进行外框切割等
1. Engraving optimal cutting path, the shortest path can work, save time ,improve efficiency
2. Chinese big-screen LCD display. users can randomly access to stored documents ,human convenient
3. System transfer graphics data, a simple layout editor (such as zooming and rotating,reproduction,etc.).
4. Output data can be layered on each floor can separate definition
Output, the output speed, laser approach (sculpture,cutting), And the definition of beters for each automatic preservation.
5. The images can be carved ,right vector for line drawing ,cutting and engraving,sculpture and accuracy can be erected.
6. Configuration Goodlaser motherboard can be achieved offline ,energy control,with dichroic cutting and engraving gradient function,engraving and cutting with high precision to meet the requirements of packaging printing industry
7. Professional development of the control software ,which possess their own inblectual property rights ,to achieve the beters set carving cutting ,cutting with envelope functions can be generated automatically envelope can be set arbitrarily envelope can be set arbitrarily carving region and its beters,such as cutting frame.

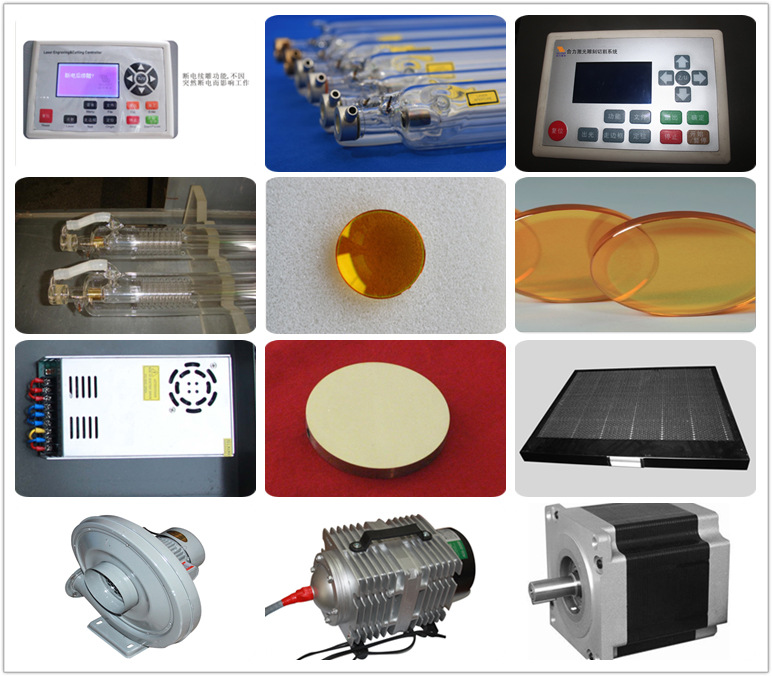

详细配置Detailed configuration
A. 美国原装进口步进电机及驱动系统
a. USA imported fully stepper motor and drive systems
B GOODLASER控制系统
b. GOODLASER control system
C.采用国外进口直线导轨
c. Foreign imports in linear guideway
D.双传输方式：工业串口、USB串口
d. Dual transmission of USB 2.0
E.中英文液晶显示，人性化按键控制板
e. Chinese/English LCD,humanity button panels
F.国产激光器（65/70/80）选配
f. Homemade laser(65/70/80)matching
G.光路系统采用新加坡全进口激光镜片
g. Optical system uses laserSingapore imports all lenses
H.高强度不锈铁蜂窝底板
h. High strength stainless Rail cellular integration backplane
I.机箱一体化结构
i. Chassing integration structure
J.支持U盘下载数据
j. Support U-download data
技术参数technical-beters
产品型号/Machine model HD1390
激光类型/Laser type 国产CO2激光器hermetic and detached co2 laser tube
激光功率/Laser power 65w/70w/80w
雕刻面积/Engraving area 1300*900
雕刻速度/Engraving speed 0-8000mm/s
切割速度/Cutting speed 0-800mm/s
重复精度/Repeating locating ±0.03mm
运动系统/Moving system CNC控制系统CNCcontrolling units
冷却方式/Cooling mode 强制水冷及保护系统water-cooling and protection system
工作电压/Working voltage 220±10% 50HZ
整机功率/Whole power 1250w
工作温度/Operating temperature 0℃-45℃
工作湿度/Operating humidity 5%-95%
控制软件/Controlling software 正版恒好激光设软件original Goodlaser software
支持格式/Graphic bat supported BMP PLT AI DXF DST
整机重量/Gross weight 300 kg

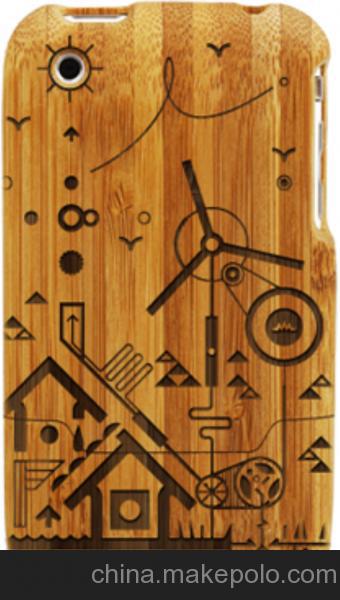

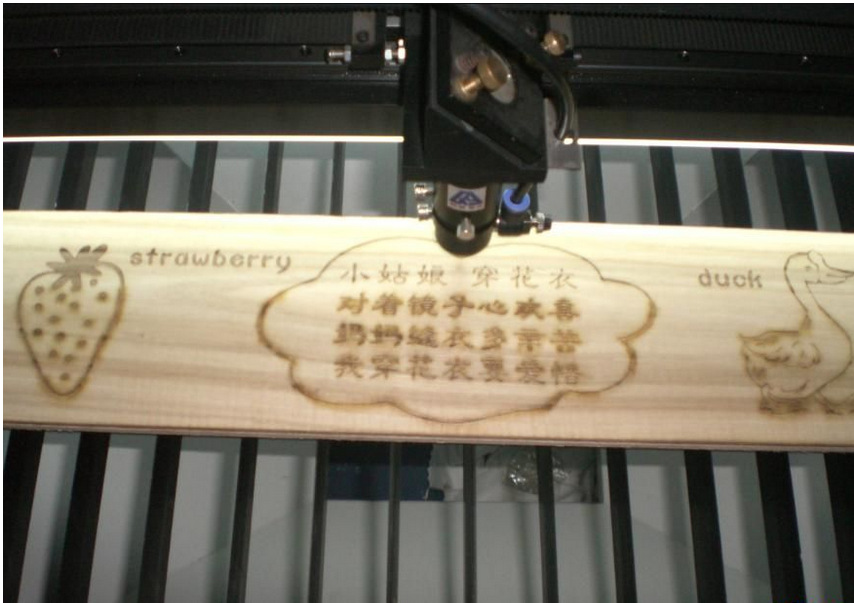

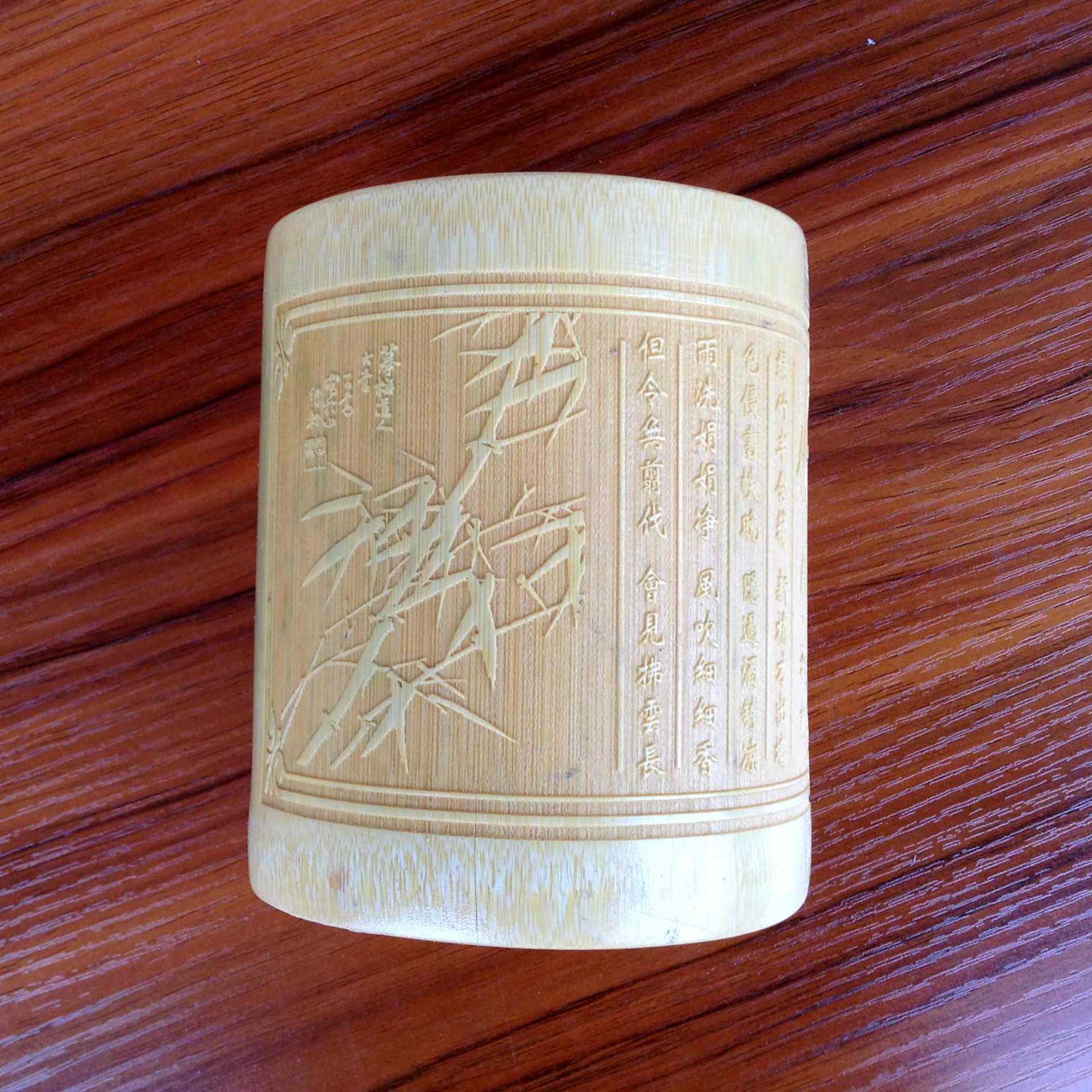

适用材料Applicable Materials
本品适用于木制品、纸张、皮革、布料、有机玻璃、环氧树脂、亚克力、毛料、塑料、橡胶、瓷砖、水晶、玉石、竹制品等非金属材料。
Wood . paper . leather . choth . organic glass . resin . acrylic . wollens . plastic . rubber . ceramic tile .Crystal . bowlder bamoo bnd other non-bl material.
适用行业Applicable Industry
广告标识标牌、工艺礼品、水晶饰品、剪纸工艺、浮雕、竹木简雕刻工艺、印刷制版、服装皮革、刺绣、装饰装修、相框制作等行业
Advertising signs logo,process gifts ,crystal ornaments,paper cutting techniques,relief,bamboo carving simple,the printing plate,leather clothing ,plexiglass,decoration,frame production
