Body Diameter 60mm, Standard IP65, IP68 on request.
MG060 series provides flange for fixed installation or end of shaft for installation, and a compact 60mm body diameter, features long life, fiber brush contact technology for ultimate perbance in many challenging applications.it is standard, off-the-shelf products, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.It can transmit signal(2A), 10A current at max 600VAC/VDC.
Standard series PART# Explanation:
MZ06018 - 06 12
| Specifications | |||
| Rings | 1~24(see table as below) | Current | Signal(2A),10A |
| Voltage | 400 VDC/VAC | Max speed | 600RPM |
| Housing Material | Aluminium Alloy | Torque | 0.5N.m+0.03N.m/6rings |
| Working life | >80million revolutions | Contact material | Precious Metal:Gold-Gold |
| Electrical noise | <10 milliohms | Contact Resistance | <2mOhm |
| Dielectric strength | 800VDC@50Hz | Lead Wire | UL Teflon® Awg22,Awg16 |
| Insulation resistance | 1000MΩ@600VDC | Lead Lengths | 300mm(12") |
| Operating Temp. | -40°C to 80°C | Protection | standard IP65,IP68 on request |
| Mechanical vibratio | MIL-SID-810E | Humidity | 10% to 100% RH |
| Materials | Lead Free,RoHS compliant | CE Certified | YES |
|
* Please note: 10A rings parallel can be used as multiple 10A current.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

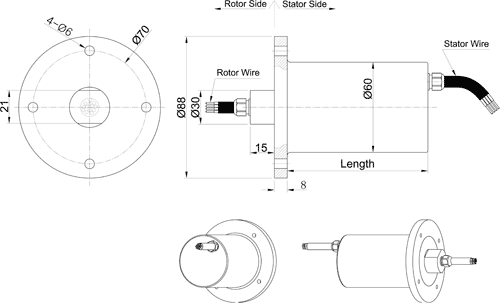

Standard drawings:
